Mazzei Chemigation and Fertigation Technology equals greater efficiency at a lower cost…

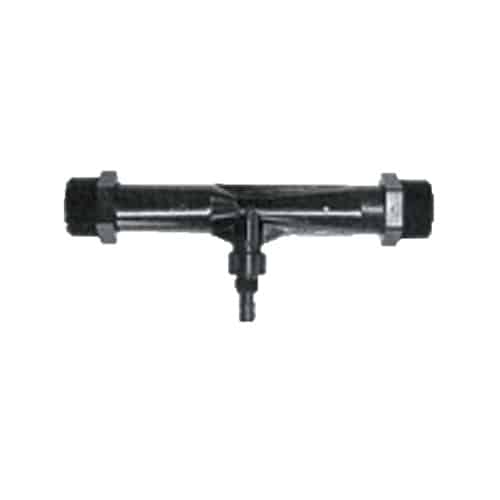

Mazzei Injectors are high-efficiency, venturi-type, differential pressure injectors with internal mixing vanes. When a sufficient pressure difference exists between the inlet and outlet ports of the injector, a vacuum is created inside the injector body, which initiates suction of a liquid or gas through the suction port.
The Mazzei Injectors require a drop in pressure and flow of 20%, which is not usually a problem.
Watch the Demonstration Video here!
Most importantly, do not oversize the injector! Call 1-800-345-3747 for assistance.

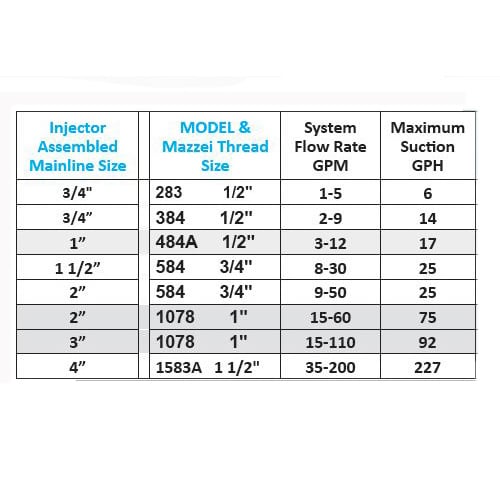

Ex. of Choosing Injector:Â 2 Acre Field with 3 inch Mainline to field. You hope to fertilize 1/4 acre to 1 acre at a time. Your flow is 9 gpm to 36 gpm. Using above chart, you need a 584. The 1078 would not work on your lower end flow rates.

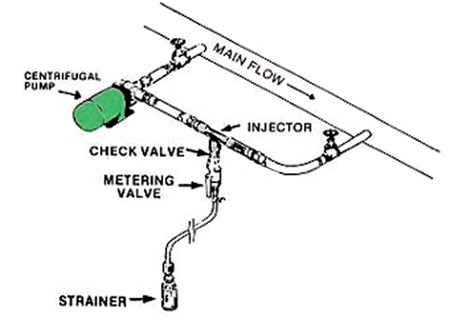

Ex. of How you will USE your Injector:Â Pour dissolved water soluble fertilizer into container/bucket. Next, open 2 Parallel PVC Valves. Lastly, slowly start to close the brass gate valve. You will see Fertilizer flow up into clear tube.
* See Product Files & Videos above for technical details. *
Complete Mazzei Injector Assembly ready to install with your Filtration system.
The complete Mazzei Injector Assembly includes:
- Vinyl Tubing
- Injector
- Strainer
- PVC Piping
- Quick Couplers
- 3 PVC Flush Valves
- 1 Brass Gate Valve
** Note:Â 3 inch Complete Mazzei Injector Assembly will only ship via Freightliner on a Pallet.
GENERAL FERTILIZER APPLICATION RATES:Â
Apply 3.5 lbs of 20-20-20 per 1,000 feet per week. Â Once you have fruit set, apply 5 lbs. per 1,000 feet of 16-3-26 with Calcium. Â ** If you are growing Tomatoes & Peppers, you should spray them every week with Calcium Chelate at a rate of 2 oz per 1,000 feet.Â
REMEMBER!! Â More is not always better!Â
*** Soil Tests are recommended. Â Ask your Local Extension Agent about leaf samples and soil samples. Â They can also make specific recommendations to your region.
