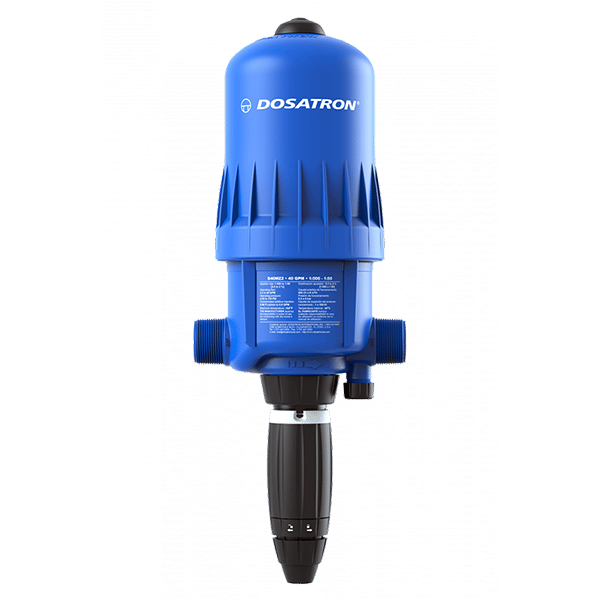

This is the newer Model # for the D8RE2VFII Replaces D8RVFII — 40 GPM injector — 1:500 to 1:50
The D8RE2 allows flow rates up to 40 GPM and can be installed in parallel for increased flow.
This newer model’s body is now made out of the same material that the D14 series units are made out of, and the injection stem is ore UV resistant.n
| Pipe Size: 1 1/2 in NPT |
| Weight: 12 lbs |
| Dimensions: 25 1/4 in x 8 1/2 in |
| GPM: 2.2 to 40 GPM (8.32 to 151 LPM) |
| Pressure: 2 to 110 PSI |
| Ratio: 1:500 to 1:50 |
| Percentage: 0.2 to 2% |
| Included Accessories: Mounting bracket, suction hose, weighted strainer, and operating manual. |

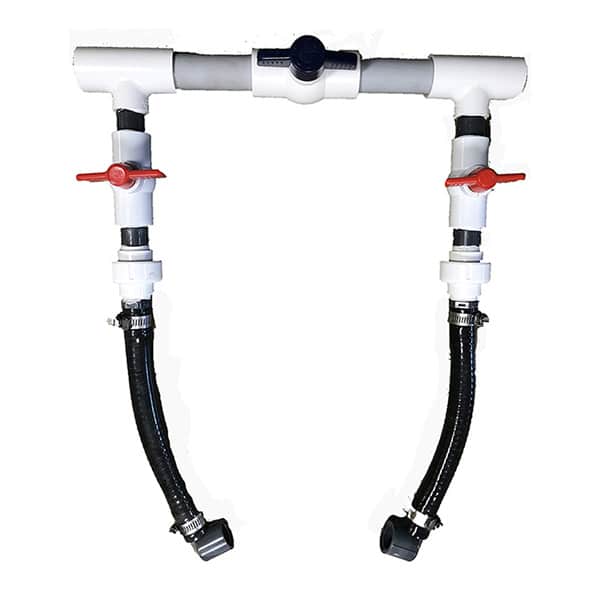

| Optional Accessories: Bypass |
** Dosatron recommends a 200 mesh Filter before the Dosatron Injector.
Click here to see our Spin-Clean Filters with 200 Mesh or Netafim Arkal Filters.
