SUPERNET PRESSURE REGULATED, BUG-PROOF MICRO-SPRINKLER (See brochures above for complete specs)
Achieve optimal irrigation results in areas with varied topography. Thanks to its unique flow regulation mechanism, SuperNet™ micro-sprinklers ensure uniform water and nutrient distribution around every tree – no matter the inlet pressure.
Great for:
- For Orchards, Vineyards, Nurseries and More.
- For Micro Sprinkler installations where flow regulation and insect resistance are desired.
- Perfect for Large Seed or Plug Beds. Perfect for growing Mushrooms on a Log.
PRODUCT ADVANTAGES:
- Wide regulating range and floating, self-flushing diaphragm maintains uniform flow across broad pressure range.
- Highest distribution uniformity – unique nozzle tube prevents negative effects of varying inlet pressure on the wetted diameter.
- The largest water passages on the market – resists clogging.
- Drop down “bug-proof” swivel/jet plate prevents entry of insects.
- Engineering-grade materials and heavy-duty bearing results in superior long-term performance.
- Everspin™ Bearings have a layer of sapphire material to reduce friction and wear, keeps the swivel centered during operation and promotes long-lasting performance
Assembly Includes:
- 48″ Long Micro Tube with Joiner Adapter on end
- Long range Deflector
- Choose from 5.3 GPH or 13.2 gph Sprinkler Head

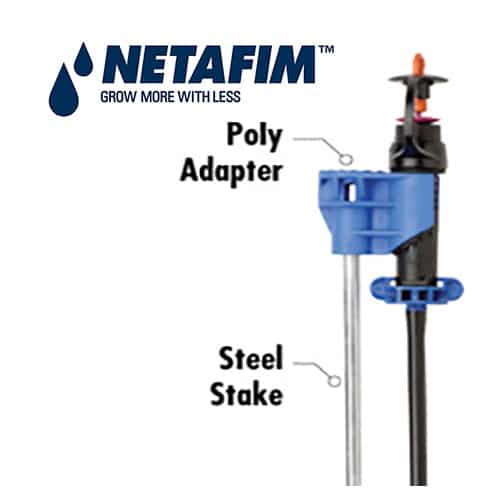

- Choose no stake, plastic stake or 48″ Steel Stake
Punches into a Poly Tubing Mainline/Sub-mainline using the Punch 250 or Miracle Punch.
Base Connection Options:
- Quick-Connect thread (standard)
- Barb (special order)

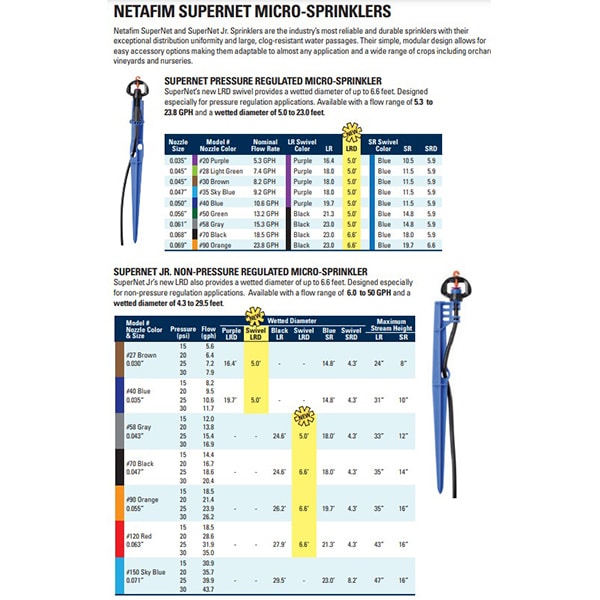

Flow range:
- Swivel: 5.3 – 23.8 GPH
- Jet: 8.2 – 23.8 GPH
Wetted diameter:
- Swivel: 5 – 23 feet
- Jet: 16 – 18 feet
- Recommended pressure range: 25 – 50 psi
- Recommended filter: 80 mesh
This assembly has a sapphire material precision bearing. Sapphire is one of the hardest surfaces known. The bearing is located where the swivel pin meets the bearings surface, creating long term durability. This bearing reduces friction and wear of the sprinkler’s rotation.
SuperNet™ is available with several options that make it adaptable to almost any application. For irrigation of young trees, a stream deflector easily snaps onto the frame to temporarily restrict spray diameter. The thread base is a convenient quick-connect for new installations and replacing older sprinklers.
Jet spray option includes four spray patterns and a wetted diameter up to 18 feet. Switching from a rotating swivel spray to a fixed jet stream plate is easy and economical. ** SEE THE BROCHURES ABOVE FOR AVAILABLE OPTIONS
