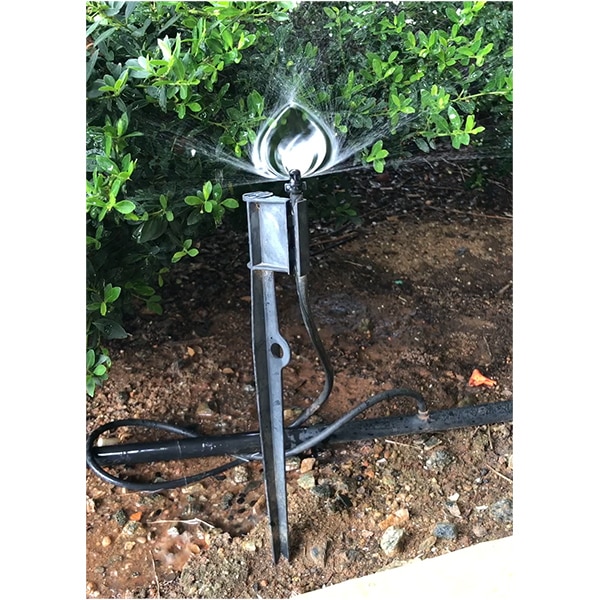

One big advantage of these Fan-Jet Micro sprinklers is a large, wetted area to cover a large root zone and offer potentially bigger yields.

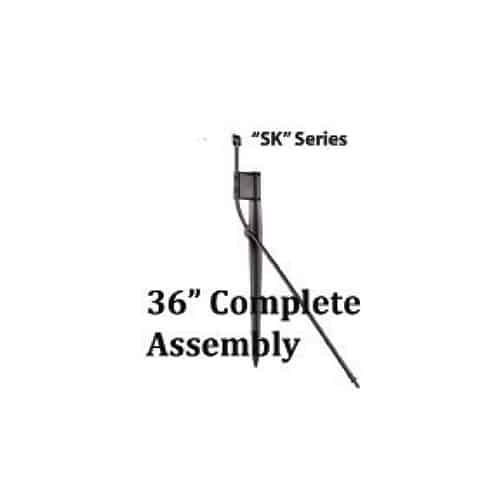

Pricing includes a complete assembly: Â Sprayer Head, 36-inch length of Micro Tubing, 12 1/2 inch Tall Stake and 1/4-inch Barbed Joiner.
Simply punch a hole with 250 Punch into Poly Tubing (1/2 or 3/4in; Poly) and insert Barb. Â Use a Figure 8 End to close off Poly!!
Note: Wetted area extends to the base of the Fan-Jet
8507-35-S  Type S – Strip Spraying (Imagine a Sidewalk)  Good for rooting plugs too.
- Nozzle Size: #35
- Pattern: S Â Â with Orange Nozzle
- Pressure: 20 -30 psi
- Â Output:Â Â 8.4 – 10.3 gph

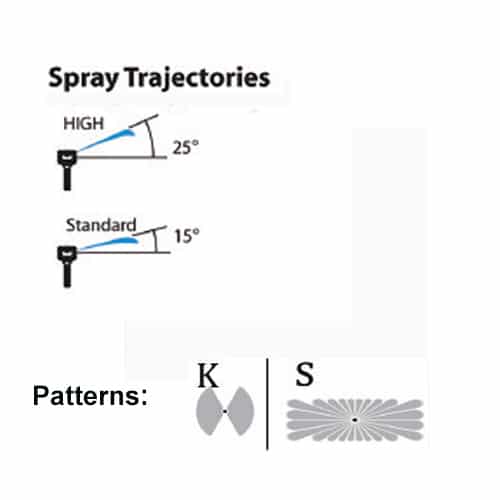

Approx. Diameter: 2′ Wide x 6′ Long feet - Standard Trajectory
Coverage Angle: 10 degrees
8507-40-K  Type K Pattern – MIST with High Trajectory also good for rooting
- Â Nozzle Size: #40
- Â Pattern: K with Blue Nozzle
- Output:Â 10.7 – 13 gph
- Approx. 8′ Diameter
- Â Mist with High Trajectory
Fan-Jet Advantages:
• Big Wetted Area – Large Root Zone – Potentially bigger Yields
• Frost Protection  – Raise ambient temperatures up to 2 degrees
• Leaching Capabilities – Leach Salts away from the Root Zone
• Best Value     – Less plastic than dual line drip   – Save up to $100 an acre
Fan-Jet Features:
• Superior 2-piece design: nozzle and twin wedge post frame with splash plate are molded separately
• Precision craftsmanship   – Consistent patterns  – Uniform flows
• No moving parts
• Quick thread for fast installation
• High grade (automotive grade) copolymer plastics
• Seven flow rates: color coded nozzles: 6-24 gph
• Eighteen spray patterns
