Senninger® sprinklers will outlast many brass sprinklers and costs less.
| 8025HR-1 SPRINKLER Design Criteria | psi | |||
| 40 | 50 | 60 | 70 | |
| #24 Nozzle (3/8″) | ||||
| Flow (gpm) | 25.2 | 28.2 | 30.9 | 33.3 |
| Diameter at 1.5 ft ht (ft) | 134 | 144 | 154 | 159 |
| Diameter at 6.0 ft ht (ft) | 152 | 159 | 164 | 168 |

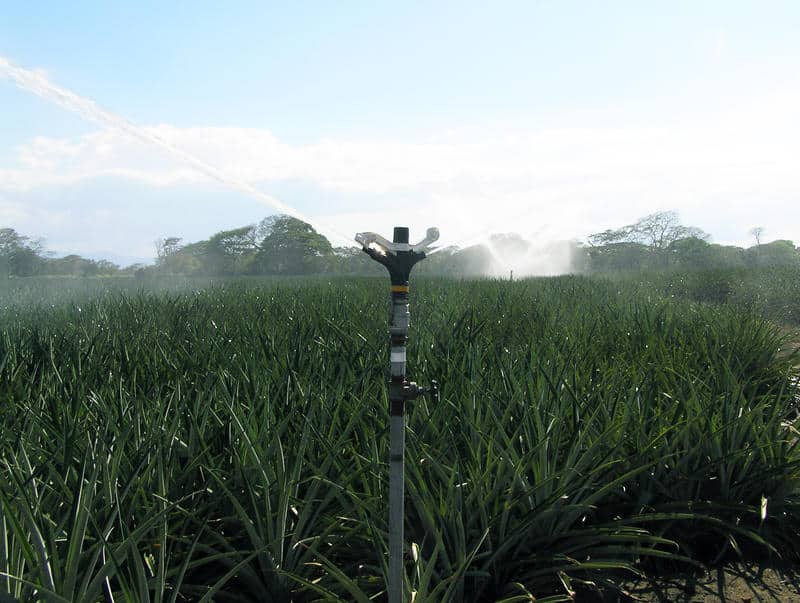

The 80 Series are Senninger’s largest impact sprinklers, often called Magpies™ due to their distinctive black and white color. The sprinklers are designed for maximum efficiency at high flow rates.
OPTIONAL NOZZLES:
#32 1/2″ Nozzle and #40 5/8 Nozzle also available for sale. See the documentation below for Flow and Distance Specs on these nozzles.
These sprinklers have many advantages over brass sprinklers. Some listed here:
- Outlasts and costs less than brass sprinklers
- Built-in hex wrench for easy in-the-field maintenance
- Available in single or double nozzle models with either range-drive or spreader-drive
- 1½” MNPT (male national pipe thread)
- Two-year warranty on materials, workmanship and performance
- Nozzles are warranted to retain correct nozzle size for five year
ADVANCED FEATURES
The Hand-Tight nozzle combines the nozzle and vane. This eliminates the need for tools during cleaning or changing. The nozzle and vane combination are inside the barrel of Senningers® impact sprinkler.This new concept eliminates the possibility of losing a vane or nozzle retainer and simplifies renozzling.
OPTIONS:
Need more Flow? We also carry additional nozzle sizes, #32 and #40. See DOCUMENTS for each nozzle specifications.
