PRESSURE REGULATED, BUG-PROOF MICRO-SPRINKLER
This precision manufactured bearing crafted out of a sapphire material – one of the hardest surfaces known – has been added to the bearing of the sprinkler at the point where the swivel’s pin meets the bearings surface wear-point – reducing friction, wear and promoting long-lasting sprinkler performance.
Available in different color-coded nozzle options. Quick-connect thread base is convenient for new installations, but excellent for replacing older jet sprinklers that use a 4mm-poly tubing when a greater diameter of coverage is desired. Its clog-resistant and simple, modular design and large water passages delivers long-term reliable service.
CLICK HERE FOR NETAFIM’S SUPERNET JR BROCHURE FOR MORE SPECS
#28 BROWN – NOZZLE SIZE 0.030″
#40 BLUE – NOZZLE SIZEÂ .035″
#70 BLACK – NOZZLE SIZE .047″

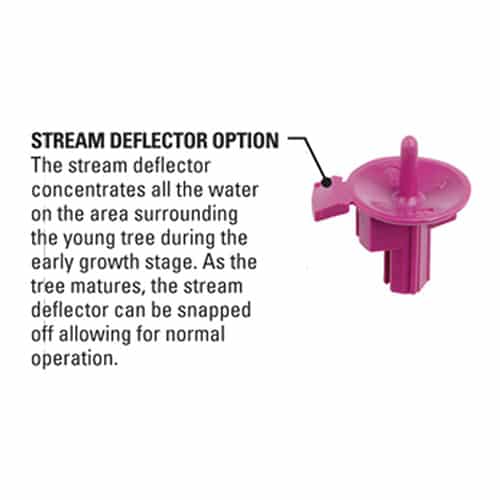

SuperNet Jr. has an optional LRD (Long Range Swivel with Stream Deflector) swivel which sprays a wider pattern resulting in a larger wetted diameter – up to 6.6 feet. SuperNet is available with a flow range of 6.0 to 50 GPH and a wetted diameter of 4.3 to 29.5 feet. * Please Call to order your Supernet Jr WITH Stream Deflector *
APPLICATIONS
• For orchard, vineyard and nursery micro-sprinkler installations where flow regulation is not required.
– LR (Long Range) – Designed for maximum coverage on wider spacings and larger root zones.
– SR (Short Range) – Designed for closer spacings and applications where dry middles are desired.
OPTIONAL: (Call to Order)
- LRD (Long Range with Breakaway Stream Deflector)       PRODUCES LARGER WETTED DIAMETER.Â
- SRD (Short Range with Breakaway Stream Deflector)
SPRINKLER MOUNTING OPTIONS:
- Suspended from trellis wire by integral hook.
- Placed in the ground with MicroNet stake.
- Threaded into an existing PE micro-tube as a replacement sprinkler.
