Screen filters are easy to take apart for cleaning and should be checked regularly for debris. This will keep your drip system in good order for many years. You may clean them under running water or with a soft toothbrush.

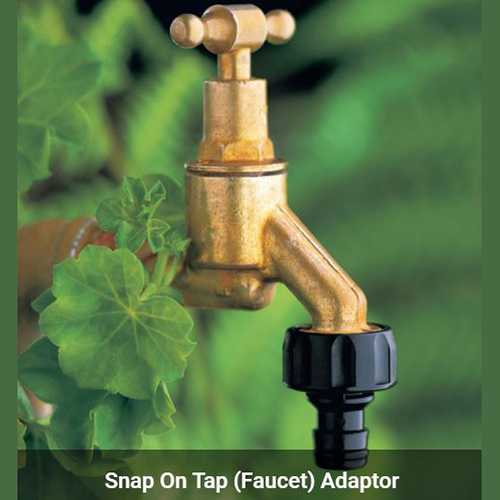

The snap-on filter 44415 needs the 45765-tap adapter to complete the assembly.

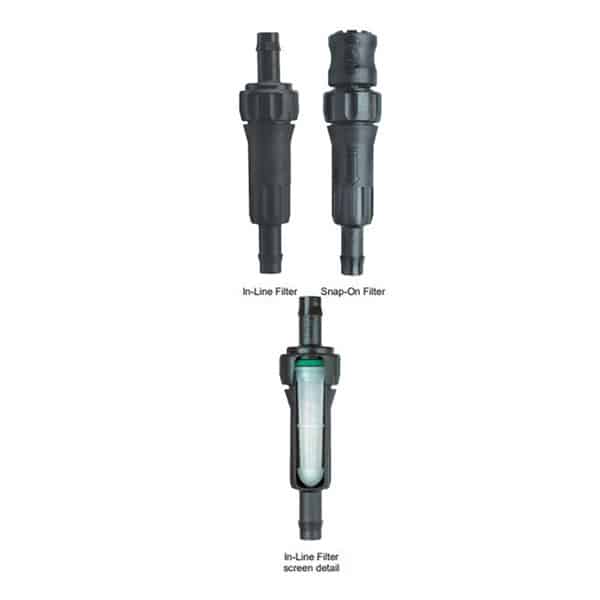

Features of the Inline™ or Snap-On™ Filter:
- In-Line model with single barb inlet and outlet
- Snap-On Tap™ model for direct connection to standard tap adapters (sold separately)
- 80 mesh screen filter
- Easily taken apart for cleaning (Clean every 1-4 weeks depending on the quality of your water.)
- Effective compact filter with minimal flow loss
- Purchase Ratchet Clamps for added protection for higher pressures.
Applications
For low pressure (up to 45 psi) micro irrigation systems.
For More Technical Data, pressure loss, components and more, see brochures above.
The ones that say ’16mm’ and come with the PRO Kits, are the ones that fit our 1/2″ Poly Blue-Stripe Mainline. Please call if you have any concerns.

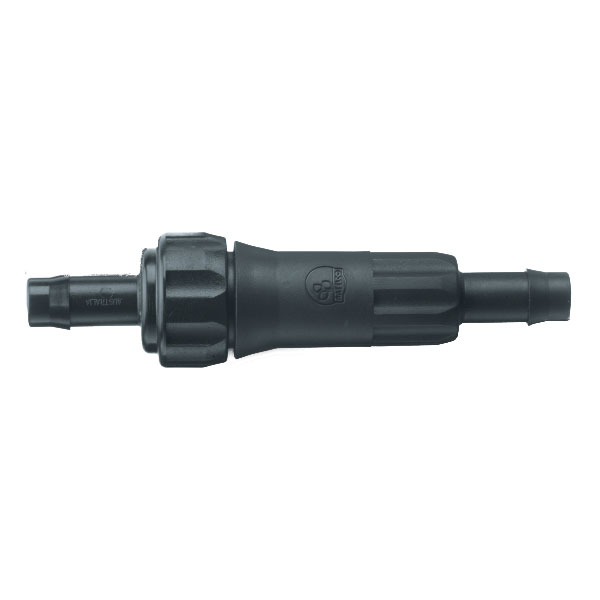

44365: In-Line Filter 5/8″ barb (tube .570 – .620 ID)
44415: Snap-On Filter 5/8″ barb (tube .570 – .620 ID)
