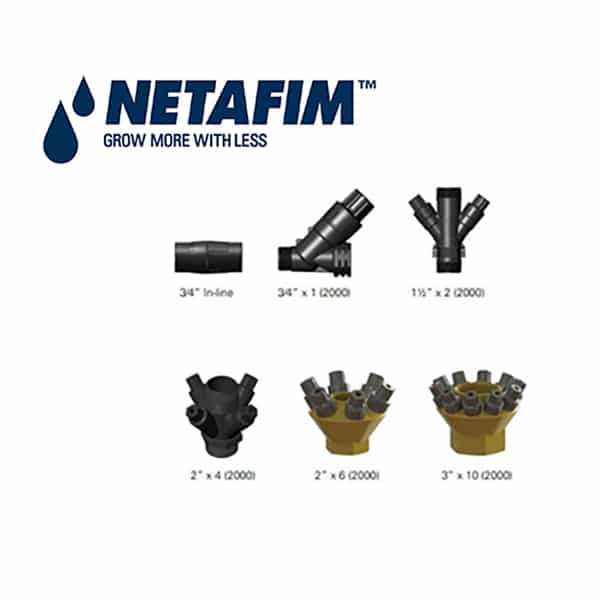

Netafim Pressure Regulators are available in multiple pressures.
Standard Model #32PRV.75 Flow Range 4.5 -17.5 gpm.

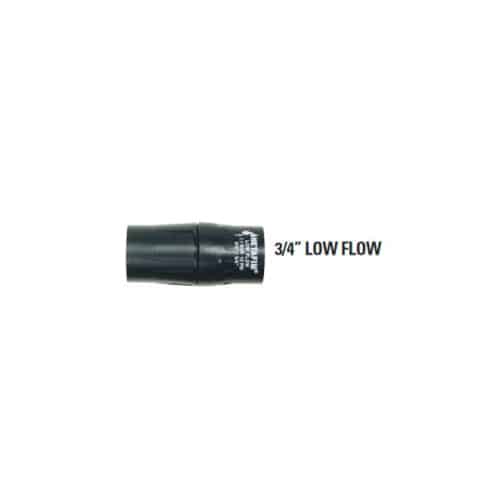

Low Flow Model #32PRV.75-LF Flow Range .25-4.4 gpm.
Netafim Pressure Regulators are manufactured with non-corrosive, high quality plastic and brass, that withstands all fertilizers and chemicals providing years of trouble-free operation. The one-piece sealed regulating unit, different for each pressure option, is field replaceable and easy to maintain.
Product Advantages
- Instant response to variations in pressure assuring that outlet pressure will remain constant regardless of inlet pressure.
- Non-corrosive, high quality plastic and brass bodies withstand commonly used fertilizers and chemicals.
- Sealed regulating unit with stainless steel spring and a screw are field replaceable and easy to maintain.
- Built-in indicator shows when outlet pressure is achieved.
- No leakage due to tight seal from rubber diaphragm.
Examples for Determining Inlet Pressure
Given Flow Rate = 63 GPM Nominal Required Pressure = 20 psi
Using Pressure Regulator Model 2” x 6 will result in 10.5 GPM per regulating unit.
10.5 GPM per regulating unit will result in an output pressure of 18 psi.
Headloss of 2” x 6 Pressure Regulator at 63 GPM is 5 psi.
Design pressure at inlet of Pressure Regulator should be 18 + 5 = 23 psi
