MOD Parts- Stakes, Manifolds and Caps for pots by Netafim

PARTS ONLY

Arrow Stakes for MOD Dripper Assemblies   (Bags of 100 $25.00.  Qty Disct 4+ Bags $23.00)

• 4″ Short Angle Arrow Dripper Stake  #01MODS-A-ANGS-B The Short Angle Arrow Dripper is 3 3/4” in length and is ideal for 4” – 5” inch pots.

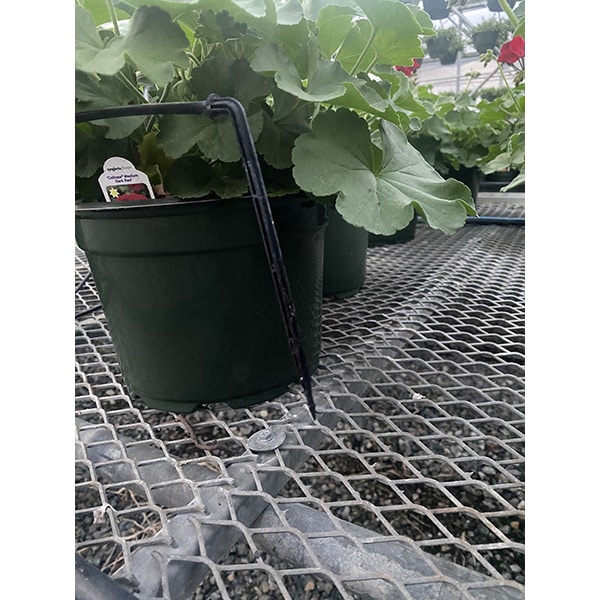

• 6″ Long Angle Arrow Dripper Stake  #01MODS-A-ANG-B The standard Angle Arrow Dripper is 6 3/8” in length and is used for 6″ and larger pots.
• Straight Arrow Dripper Stakes   #01MODS-A-ST-BK-B – (Not as common) Straight Arrow Dripper is an original straight arrow stake by Netafim

These stakes allow placement of the water exactly where necessary.    They allow maximum flexibility in greenhouse and nurseries (with soft PE micro- tubes).
Arrow Angle Stakes work with all on-line drippers, barbs, manifold or adapters.     Install with other Netafim™ drippers to add compensated and anti-drain functionality.

MOD Dripper Manifolds  Sold in Bags of 100

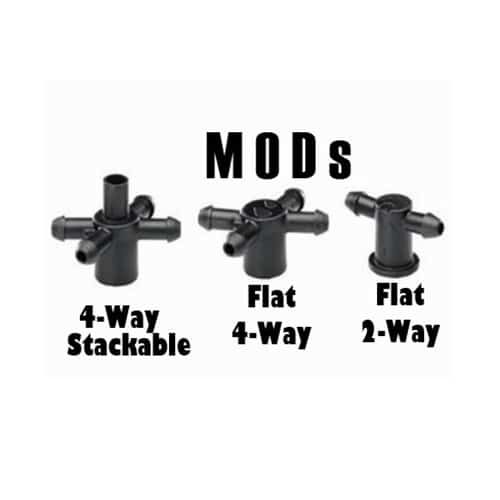

• 01ADP4WPF-B      4-Way Manifold for making 4-Way Multi-Outlet-Dripper Assemblies

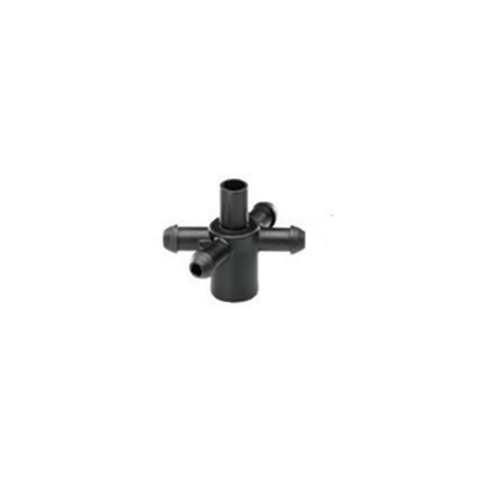

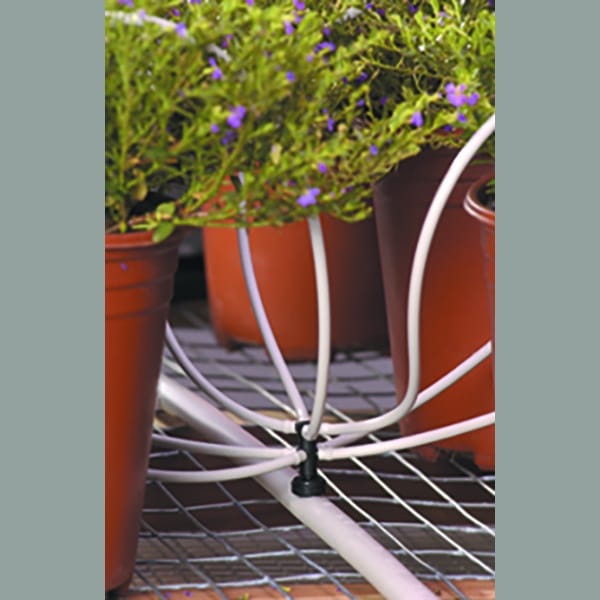

• 01ADP4WPFS-B    4-Way Stackable Manifold. Sits on top of 2-way or 4-way manifold to make a 6- or 8-way Multi-Outlet-Dripper Assembly
• 01ADP2WPF-B      2-Way Manifold for making 2-Way Multi-Outlet-Dripper Assemblies
• Old style Brown     4-way Manifold (no longer made)

Pressure Compensating Drippers (See below.  Required to complete assembly)   Sold Each or Bags of 250

01wpcjl4n-b    1 gph dripper with 2-way assemblies.
01wpcjl8n-b    2 gph dripper with 6 or 8-way assemblies.    Water is distributed evenly among the pots.

Related Micro Tubing   5/3mm  (Use a Punch 250 or Miracle Punch)

#15FPE53    Black        or     #15FPEW53   White/Cream

150 Mesh Filters Recommended

Higher Crop Values

This results from having a highly uniform top quality crop – which is what to expect when water and fertilizer uniformity are improved. Netafim’s MODs feature both pressure compensation and a built-in check valve. This combination of features (referred to as PCNL) is the highest level of technology available in drippers today. It ensures that every plant will receive exactly the same amount of water and fertilizer regardless of where the plant is located within the system. Each dripper adjusts itself automatically to the system pressure and elevation so that even on rolling or sloped ground, the uniformity of watering is 94%. The built-in check valve prevents unwanted drainage of the system onto the lowest plants when the watering cycle is completed.

Less Disease

Water on foliage and flowers can spread disease rapidly. By applying water directly to the pot, the rest of the plant remains dry. Additionally, pesticides which are applied to the foliage are not washed off by daily watering. This can reduce the need for spraying – further lowering production costs – and decrease run-off contamination.

Flexible and Portable

The 4-Way Flat manifold separates for easy storage or transport in a box. Since the MOD is removable from the dripper supply tubing and bench, moving in the next crop on an empty bench is quick and easy. The dripper supply tubing (with the dripper attached) can be rolled up without tangling the spaghetti tubes. If a different plant spacing or a different flow per pot is desired, simply change or add a manifold.

Low Cost and Fast Payback
