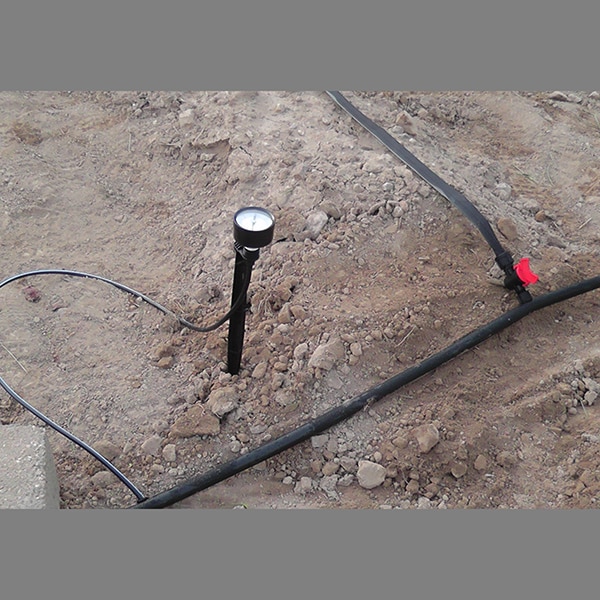

We carry many gauges. The standard ones have 1/4″ threads on the bottom to work with any pvc adapter. We use these by Engineered Specialty products in our PR-Tape assembly to measure the pressure at the end of the row.

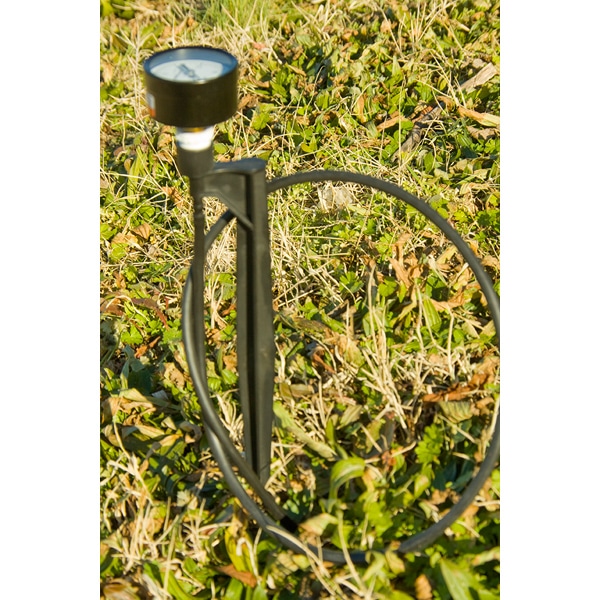

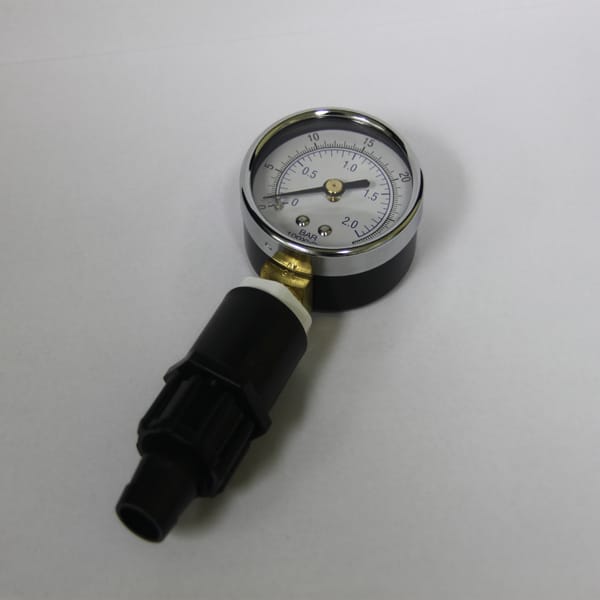

We use a 0-30 psi gauge with threads on the back in our PR-STAKE assembly. This measures pressure at the start of the field so you can determine how many rows to water at one time.
Why use a Liquid Gauge?

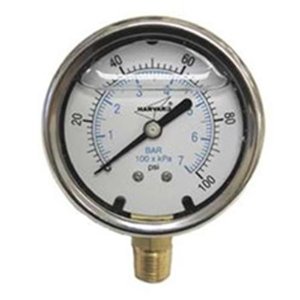

Liquid Filled Gauges are offered in pressures 0-100, 0-200, or 0-300 by Harvard. These are large with a 2-inch dial Face Steel Case.
0-15 PSI PRESSURE GAUGES FOR LOW FLOW SYSTEMS
When planting and harvesting seasons are in full swing, Harvard Corporation Gauges can provide accurate solutions that can protect equipment failures causing major delays. Protecting your fluids and equipment, all while keeping hard-earned profits where they should be, on the farm.
Part #IPG 152-4L    2″ Dial Face     Steel Case   Pressure Gauge Features:
- Rugged precision-made phosphor-bronze Bourdon tube movements assuring maximum accuracy (+/- 3-2-3%) under adverse field conditions.
- TO BE USED WITH AIR OR WATER ONLY.
- Â Manufactured for AGI in an ISO 9001 facility.
POLYPROPYLENE CASE:
- Bourdon tube movement is totally enclosed in corrosion resistant polypropylene housing, acrylic lens.
- Resists rust, electrolytic action and chemical solvents.
- Brass sockets standard.
STEEL CASE:
- Deep drawn one piece steel housing encases a quality movement.
- Genuine mar-resistant glass lens and brass socket connections are standard.
0-100 PSI HARVARD, STANDARD PRESSURE NON-LIQUID
When planting and harvesting seasons are in full swing, Harvard Corportation Gauges can provide accurate solutions that can protect equipment failures causing major delays. Protecting your fluids and equipment, all while keeping hard-earned profits where they should be, on the farm.
Features:
- Rugged precision-made of phosphor-bronze Bourdon tube movements assuring maximum accuracy (+/- 3-2-3%) under adverse field conditions.
- To be used with air or water only.
- Manufactured for AGI in an ISO 9001 facility. Bourdon tube movement is totally enclosed in corrosion resistant housing.
- Resists rust, electrolytic action and chemical solvents.
- Third party certified to NSF/ANSI 372. No Lead brass sockets.
- Deep drawn one piece steel or molded plastic housings encase a quality movement.
- Genuine mar-resistant glass or acrylic lens.
*Warranty covers all manufacturing defects from the factory and some components for up to one year.
