Antelco® Green Back® Valves offer a simple solution for water diversion and flow control in your irrigation system. This low volume shut-off valve makes water control simple.
Antelco® inline Valves are perfect as an on/off valve in irrigation for landscape and agricultural use, e.g. gardens, landscape applications, drip and under tree sprinkler systems, and as system flushing valve.
Sold by the each. Packed in bags of 25. Discounts for 25+
| Antelco Part Numbers & Description | FITS: |
|---|---|
| 45505 13mm – 1/2″ (tube .520 ID) | Fits .520 ID x .620 OD poly pipe Fits Antelco Tubing #51072. |
| 45515 16mm – 5/8″ (tube .570 – .620 ID) | Fits Antelco Tubing #51082 and DripMate Pro Kit Also Fits our 1/2″ Blue-Stripe Poly Tubing |
| 45535 20mm – 3/4″ (tube .810-.820 ID) | Fits our 3/4″ ldpe poly tubing |
| 45545 25mm – 1″ (tube 1.050 ID) | Fits our 1″ ldpe poly tubing |
| 49035 16mm x 1/2″ (Pipe thread x barb) | Fits any 1/2″ FNPT Fitting |

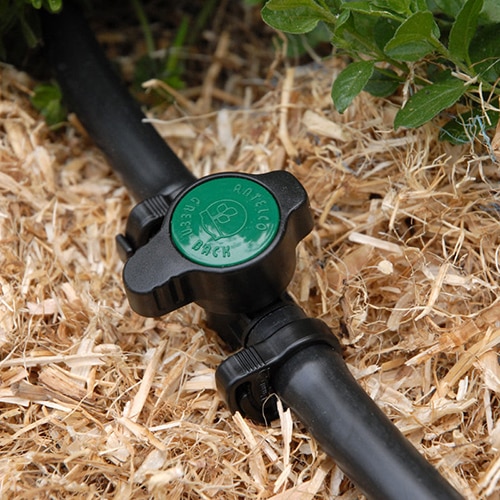

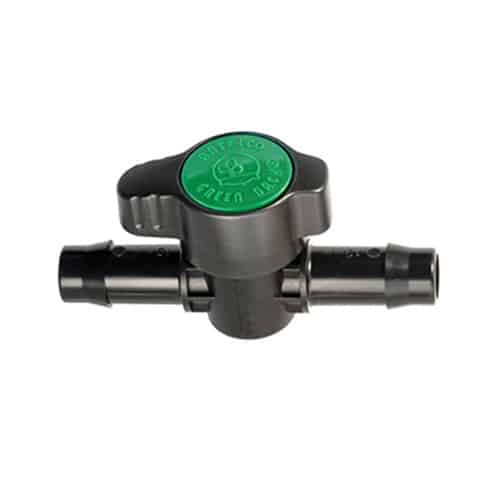

Features of the Antelco® Green Back® Inline Valve
- Simple on-off operation and straight through flow.
- Operating pressure range up to 45 psi.
- Green colored cap for standard irrigation applications.
- UV stabilized materials for long life.

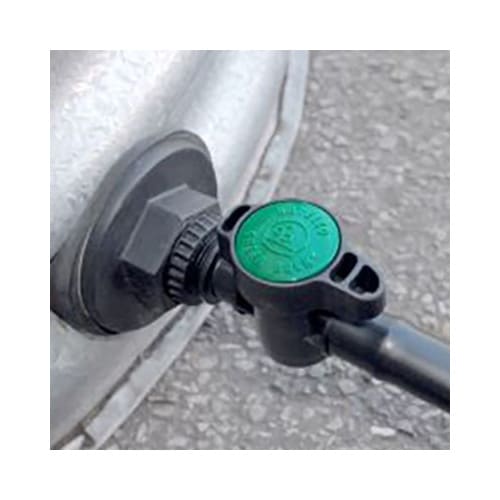

Features of the Antelco® Green Back® Threaded Ball Valve
The #49035 Green Back® 1/2-inch MNPT valve can be threaded into any 1/2-inch FNPT fitting for use in low pressure applications for individual dripline control, tank valves, drain valves or where 1/2-inch MNPT connections are required. These green back valves with threads are great for use with a rain barrel.
Applications
- Secondary zone water diversion and flow control.
- Always install as an inline valve with tubes connected to both inlet and outlet.
- On-Off valves to suit micro low density polyethylene tubing systems.
- Secondary zone water diversion and flow control. Always install as an inline valve with tubes connected to both inlet and outlet.
- Threaded Valves suitable for individual dripline control, tank valves, drain valves or where 1/2″ MNPT connections are required.
