- SET-UP

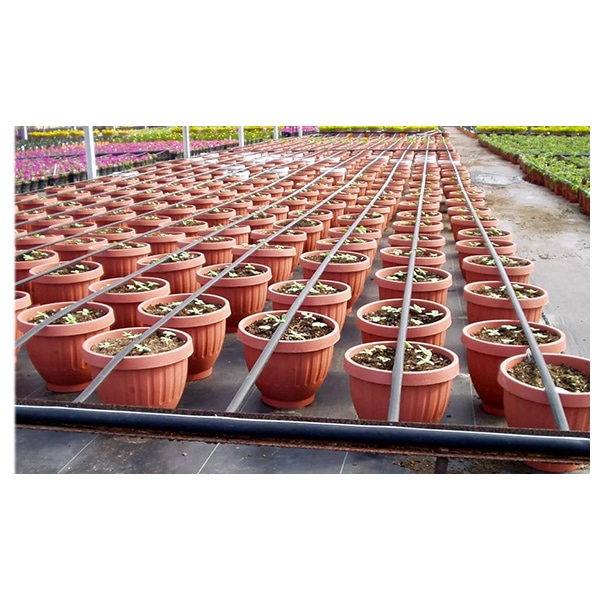

- Positioning of the pots (plants) is quick and easy – just place the pot under the mark on the dripline – saving up to 20% in installation labor costs.
- MAINTENANCE
- No searching or stooping to recheck drippers.
- Time saving with the marked dripline.
- TECHNICAL SPECIFICATIONS (see product brochure for more info)
- Filtration: 120 mesh
- Maximum Operating Pressure: 12 psi
- 24-inch Spacing — 0.42 gph 0.30 GPM per 100 feet
- Inside Diameter: 0.636-inch / Wall Thickness: 8 mil.
SPACE-IT™ DRIPLINE LAYOUT
Space-It Dripline is the simplest way to achieve a good, long term quality pot watering system. Initially, the general layout of the Space-It Dripline is very simple:
- For lengths over 100 feet, locate the supply header in the center and install the driplines outward in both directions with separate connections for each dripline.

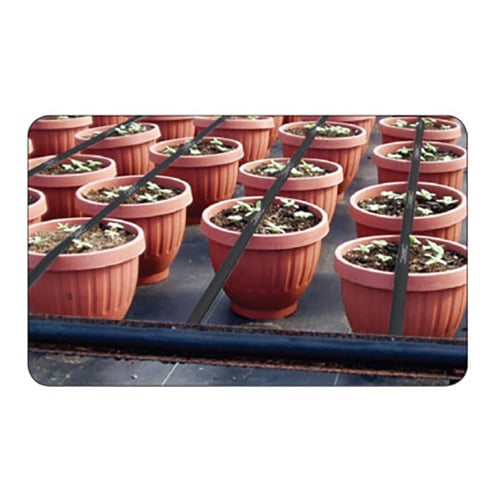

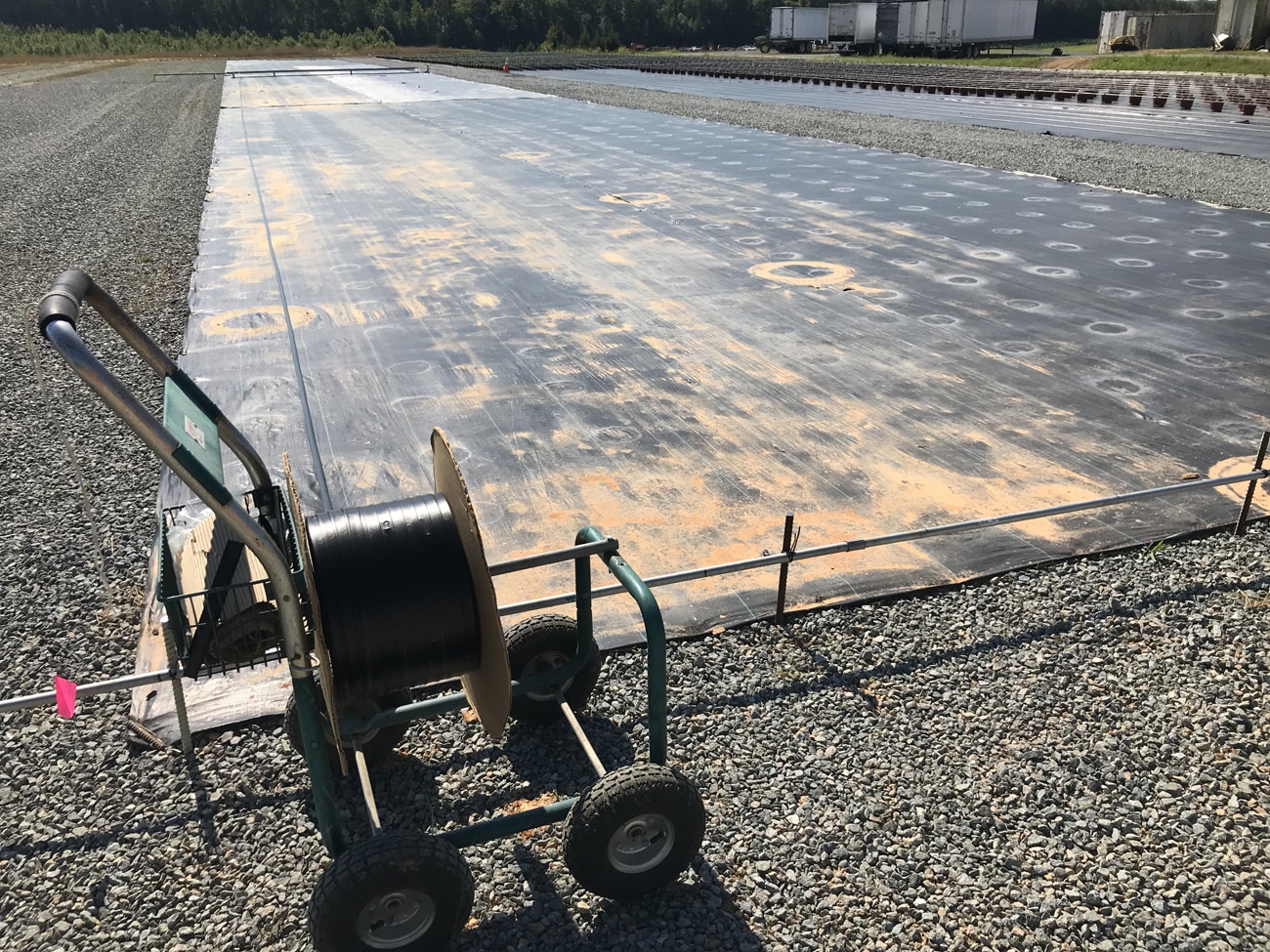

- Easily stretch out over field, then align pots under the ‘marks’.
- There are several connection options available for Space-It Driplines. Let us help you decide on the best one for your field.
- You may use a Tape Terminal to tie off End of Tape and connect to a fixture.
Space-It™ Dripline Design Info by Netafim. (See product brochure for more.)
STEP 1 Use the Zone Flow chart to help calculate how much water it takes to operate one zone of pots with Space-It Dripline. You do not need to operate the maximum amount, but do not exceed the maximum. If the amount of water required exceeds the amount available, reduce the zone size.
STEP 2 We recommend a row or run length of 100’ or less to limit expansion/contraction issues and general operational practices.
STEP 3 Select the major system components.
Next, once you have selected the flow of each zone, it is then time to size the major system components. For additional options, contact us.
