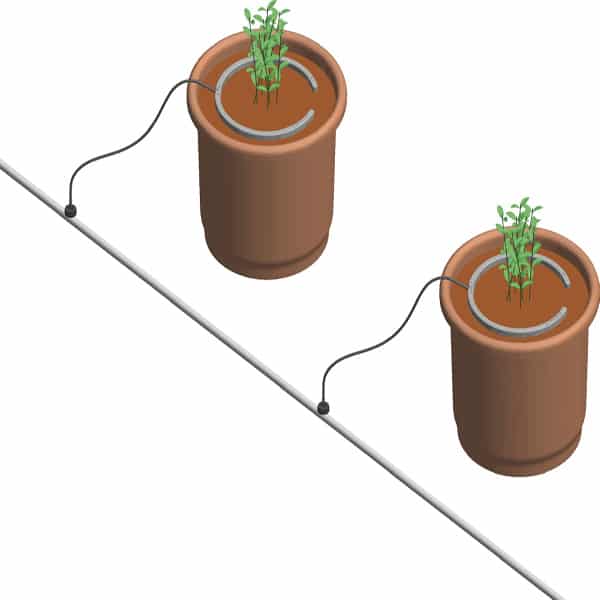

This Install Irrigation Kit for Netbows™ we make here to use with the NETBOW™ Drip Rings by Netafim. This watering system has all commercial grade products and is perfect for small areas or just to try out for the first time. These rings fit inside a pot and ensure that the roots are evenly watered, thus reaching their full growth potential.
NETBOW™ is an innovative, user-friendly container irrigation multi-outlet dripper arc with high clogging resistance and superb water distribution.
NETBOW™ 10-INCH 8-OUTLETS 0.53GPH@ 14.5PSI. Superb clogging resistant emitters by Typhoon! Incredible technology!

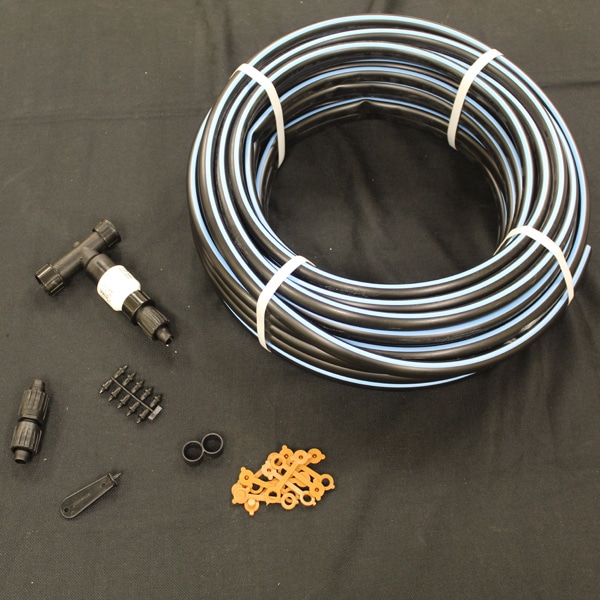

100 Foot Install Irrigation Kit for Netbows™ Includes:
1- 1/2-inch x 100-foot Poly Tubing Mainline
1- 3/4-inch Screen Filter and 30 PSI Pressure Regulator Assembly
1- Filter to Mainline Connector PL-55-PHS
1- Punch
1- Figure-8 End for 1/2-inch Mainline
1- 1/2-inch Poly Repair Coupler – just in-case
10- Goof Plugs – just in case
10- Dripper Shut Off Caps to control each emitter if desired #11WPSCAP
*Use this along with Netbow™ Kit or Individual NetBows™
See the Product Videos & Brochure links above for More.
SPECS & RECOMMENDATIONS
- Compatible with 2-15 Gallon 10-60L) containers
- Diameter: 5-inch or 10-inch (120mm, 250mm)
- Flow Rate: 4-8 emitter outlets with flow of 0.53 GPH (2.0 l/h) each at 14.5 psi (1.0 bar)
- The flow from each emitter outlet will be determined by the hub dripper, based on the pressure developed in the NetBow™ inlet
- We recommend that the flow of the hub dripper to be 0.53-2.11 GPH (2-8 l/h). If your flow is out of this determined range please follow Netafim guidelines for on-line emitter design.
- Chemical and UV resistance for durability — Colored light gray for improved light reflection
- Max. operating pressure for hub drippers – 58.0 psi
- High clogging resistance by associating Netafim proven Typhoon™ drippers
- Superb uniformity with 8 dripping outlets

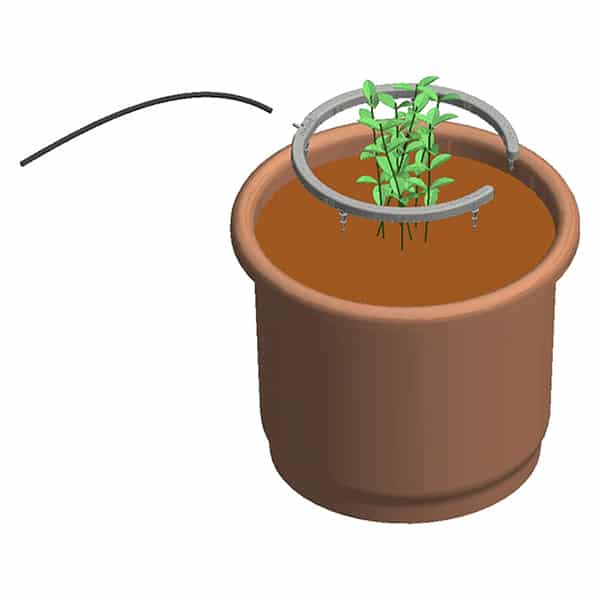

- Easy to place in the container & to connect the micro tube
- Surface wetting that distributes the water uniformly in the container substrate
- The NetBow™ is patented by U.S. Design App. No. 29/709,373 and other countries
- Options of connecting to diverse of hub drippers like: PCJ , PC, or Uniram™ with Dr. Zip™ NetBow™
